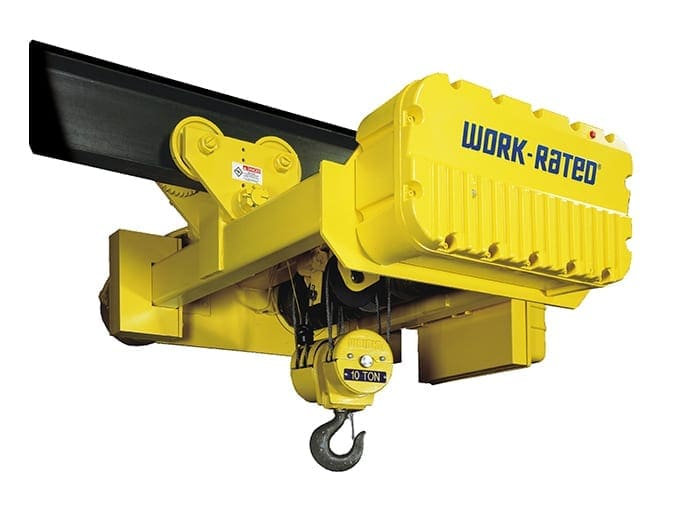

ACCO ® Work Rated® Hoists (1-25 Tons)
ACCO ® product line has been the industry leader in establishing hoist duty ratings and has made certain their hoists meet this criteria.
The Work-Rated hoists are duty service classification H4. Hoists in this category are capable of high volume handling of heavy loads. Operating 30 minutes of each hour with a maximum of 300 starts an hour. Wright Work-Rated hoists meet ASME-4M, both mechanically and electrically.
Wright® Work-Rated® Hoists offer options for hazardous locations, spark resistant and explosion resistant hoists.
Standard Features
- Choose 1, 2, 3, 5, 7-1/2, 10, 15, 20- & 25-Ton Capacity
- Standard Speeds and Lifts Readily Available
- Choose Lug, Plain, Geared or Motorized Trolley, Deck Mounted or Top Running Trolley
- Standard Trolley Speeds Readily Available
- Single and Double Reeved Models Available
- H4 Duty Class
- Single or Two Speed Motors
- Choose 208V, 230V, 460V, 575V
- Motor Thermostats
- Overload Cutoff
- Mechanical Load Brake
- Motor Brake
- Hook Travel Upper Gravity Limit Switch
- 115V Control Circuit
- NEMA 3R Enclosure
- Machine Cut, Case Hardened, Alloy Steel Gears
- Machined Steel Sheaves
- Largest Oil Bath in Industry
- Oil Sight Gauge on Housing Cover
- Rugged, Fluted Aluminum Alloy Housing & Cover
- Complies with ASME B30.16 and ASME HST-4M Standards
Additional Options
- Lifts Longer Than Cataloged Available on Application • Geared Limit Switch
- Motor Fuse Holders and Fuses
- Variable Speed by Inverter Control
- Models for Hazardous Locations. Class I & II, Group C, D, E, F & G, Division I & II
- Bullard – Type Hook
- Trolley Modifications & Speeds
- Operational on Patented Track
- Trolley ACM and Brakes
- Trolley Drop Down Lugs & Bumpers
- Tagline Tow Arm
- Epoxy Paints Available on Application
- Audible or Visual Hoist Overload Indicator
- Running Time Meter
*Other Options Available
