Harrington
Electric Chain Hoists

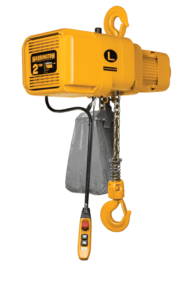

NER/ER ELECTRIC HOIST – 3 PHASE

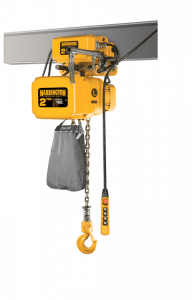

NERM/ERM ELECTRIC TROLLEY HOIST – 3 PHASE

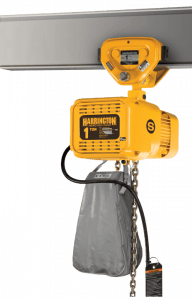

NERG/ERG ELECTRIC TROLLEY HOIST – 3 PHASE

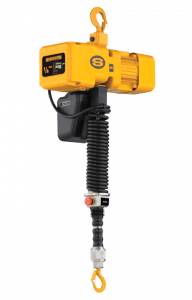

NER/ER CYLINDER CONTROL ELECTRIC HOIST

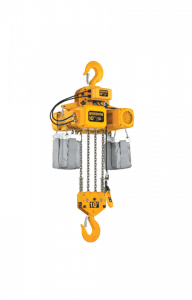

NER/ER LARGE CAPACITY ELECTRIC HOIST – 3 PHASE
Capacity
⅛ – 5 ton
Voltage
- 208-230/460-3-60
- Dual speed models are not reconnectable
Body
- Rated IP55
- Die-cast aluminum
- Completely sealed body for for both indoor and outdoor applications, including harsh environments
Gears
- Heat treated helical and spur gears are precision machined for long life
- Oil bath lubrication promotes a quiet, smooth, cool operation
Load Chain
- Ultra-strong high-performance and corrosion resistant nickel-plated
- Grade 80 DIN chain
Operation
- Pendant control
- Under-the-cover VFD standard for dual speed hoists. Speed ratio is 6:1 with adjustability up to 12:1
Hooks
- Forged carbon steel
- Open gradually without fracturing under excessive loads
- Bottom hook swivels 360 degrees
Pendant
- Push Button
- Rated IP65
- Standard control voltage is 110V
Brake
- 10 year warranty
Motor
- Totally enclosed fan-cooled (TEFC)
- Motor fin, fan blade and fan cover design cools the motor and brake
Capacity
⅛ – 5 ton
Voltage
- 208-230/460-3-60
Body
- Rated IP55
- Die-cast aluminum
Gears
- Heat treated helical and spur gears are precision machined for long life
- Oil bath lubrication promotes a quiet, smooth, cool operation
Load Chain
- Ultra-strong high-performance and corrosion resistant nickel-plated
- Grade 80 DIN chain
Operation
- Pendant control
- Under-the-cover VFD standard for dual speed hoists
- Speed ratio is 6:1 with adjustability up to 12:1
- Trolley speed ratio is 6:1 with adjustability up to 10:1
Hooks
- Forged carbon steel
- Open gradually without fracturing under excessive loads
- Bottom hook swivels 360 degrees
Pendant
- Push Button
- Rated IP65
- Standard control voltage is 110V
Brake
- 10 year warranty
Motor
- Totally enclosed fan-cooled (TEFC)
- Motor fin, fan blade and fan cover design cools the motor and brake
Additional Features
Trolley
- Drop Stops
- Bumpers
- Shafts fit wide flange range and have spacers for easy adjustments
- All steel wheels have sealed ball bearings and will fit a flat or tapered beam flange
Capacity
⅛ – 5 ton
Operating Conditions
Recommended for -4° to +104° F and humidity of 85% or less
Body
- Rated IP55
- Die-cast aluminum
Gears
- Heat treated helical and spur gears are precision machined for long life
- Oil bath lubrication promotes a quiet, smooth, cool operation
Load Chain
- Ultra-strong high-performance and corrosion resistant nickel-plated
- Grade 80 DIN chain
Operation
- Pendant control
- Under-the-cover VFD standard for dual speed hoists
- Speed ratio is 6:1 with adjustability up to 12:1
Hooks
- Forged carbon steel
- Open gradually without fracturing under excessive loads
- Bottom hook swivels 360 degrees
Pendant
- Push Button
- Rated IP65
- Standard control voltage is 110V
Brake
- 10 year warranty
- “The Guardian”: Smart Brake Technology
- Revolutionary DC current motor brake with electrical failsafe design
Motor
- Totally enclosed fan-cooled (TEFC)
- Motor fin, fan blade and fan cover design cools the motor and brake
Additional Features
Trolley
- Drop Stops
- Shafts fit wide flange range and have spacers for easy adjustments
Capacity
⅛ – 1/4 ton
Voltage
- 208-230/460-3-60
- Dual speed models are not reconnectable
Body
- Rated IP55
- Die-cast aluminum
Gears
Heat treated helical and spur gears are precision machined for long life
Load Chain
- Ultra-strong high-performance and corrosion resistant nickel-plated
- Grade 80 DIN chain
Operation
- Cylinder control
- Under-the-cover VFD standard for dual speed hoists
- Speed ratio is 6:1 with adjustability up to 12:1
Hooks
- Forged carbon steel
- Open gradually without fracturing under excessive loads
- Bottom hook swivels 360 degrees
Cylinder Control
- Standard control voltage is 110V
- In-line handgrip permits one handed operation
Brake
10 year warranty
Motor
- Totally enclosed fan-cooled (TEFC)
- Motor fin, fan blade and fan cover design cools the motor and brake
Capacity
8 – 20 ton
Voltage
- 208-230/460-3-60
- Dual speed models are not reconnectable
Body
- Rated IP55
- Die-cast aluminum
Gears
Heat treated helical and spur gears are precision machined for long life
Load Chain
- Ultra-strong high-performance and corrosion resistant nickel-plated
- Grade 80 DIN chain
Operation
- Pendant control
- Under-the-cover VFD standard for dual speed hoists
- Speed ratio is 6:1 with adjustability up to 12:1
Hooks
- Forged carbon steel
- Open gradually without fracturing under excessive loads
- Bottom hook swivels 360 degrees
Pendant
- Push Button
- Rated IP65
- Standard control voltage is 110V
Brake
10 year warranty
Motor
Totally enclosed fan-cooled (TEFC)
