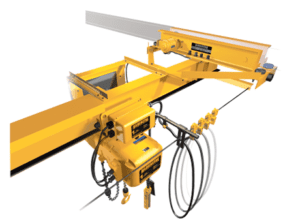

Harrington Underhung Crane Kits
Products
Harrington Underhung Crane Kits
Harrington underhung crane kits utilizing a single girder combine superior performance with underhung space savings. It’s a rugged design that easily handles today’s most demanding Class “C” applications, including fabricating, machining, die handling, production, assembly, and maintenance. All bolted assembly makes installation quick and easy—no welding required. Most wiring connections are factory installed or plug-in type. You can rely on Harrington underhung crane kits for durability, reliability, and years of trouble-free service.
CAPACITY / SPAN
- CUM motorized 2 – 5 Ton/Up to 50′ Span
- CUP push 2 – 5 Ton/Up to 35′ Span
- CUG geared 2 – 5 Ton/Up to 45′ Span
SERVICE CLASS
- Class C
COMPLIANCE
- Crane Manufacturers Association of America (CMAA)
- National Electric Code (NEC)
- American National Standards Institute (ANSI/ASME)
CRANE SYSTEM INCLUDES
- End trucks come standard with drives, brakes, bumpers, drop stops, and rail sweeps
- Crane control panel with adjustable Electronic Acceleration Control (EAC) and thru-the-door lock-out disconnect switch
- Crane wiring installed in code-compliant conduit
- Standard bridge beam assembly with bracing and capacity labels
- Trolley hoist supplied with operator control pendant
- Documentation including assembly and installation
- Instructions, crane operator’s guide, and owner’s manuals
- Touch-up paint
- One year warranty
STANDARD FEATURES
- Bolted assembly for quick and easy installation
- Minimal welding required
- Most wiring connections are factory installed or plug-in type
- Rail sweeps
- Drop stops
- Rubber bumpers
CAPABILITIES
- Crane speeds: 40, 80, 120 ft/min single speed or variable speed
- Motorized trolley speeds: 40 or 80 ft/min single speed, 80/20 ft/min dual speed or variable speed
- 3 phase voltages: 208, 230/460, 380, 575 (50 or 60 Hz)
- Suitable for use on S or W shaped beam (patented track models available)
OPTIONS
- Variable frequency control or two speed, radio remotes
- Roving pendants
- Multiple hoist variations and options
- Runway electrification
- Plug and Play connections
