Yale Wire Rope Hoists

CraneWerks is a large distributor of Yale wire rope hoists, air hoists, and chain hoists. Many of our standard hoists have a 3 business day delivery. For quick pricing please contact us today!

Yale Hoists yellow logo with black background distributed by CraneWerks, Inc.

YK

Yale Wire Rope Hoists

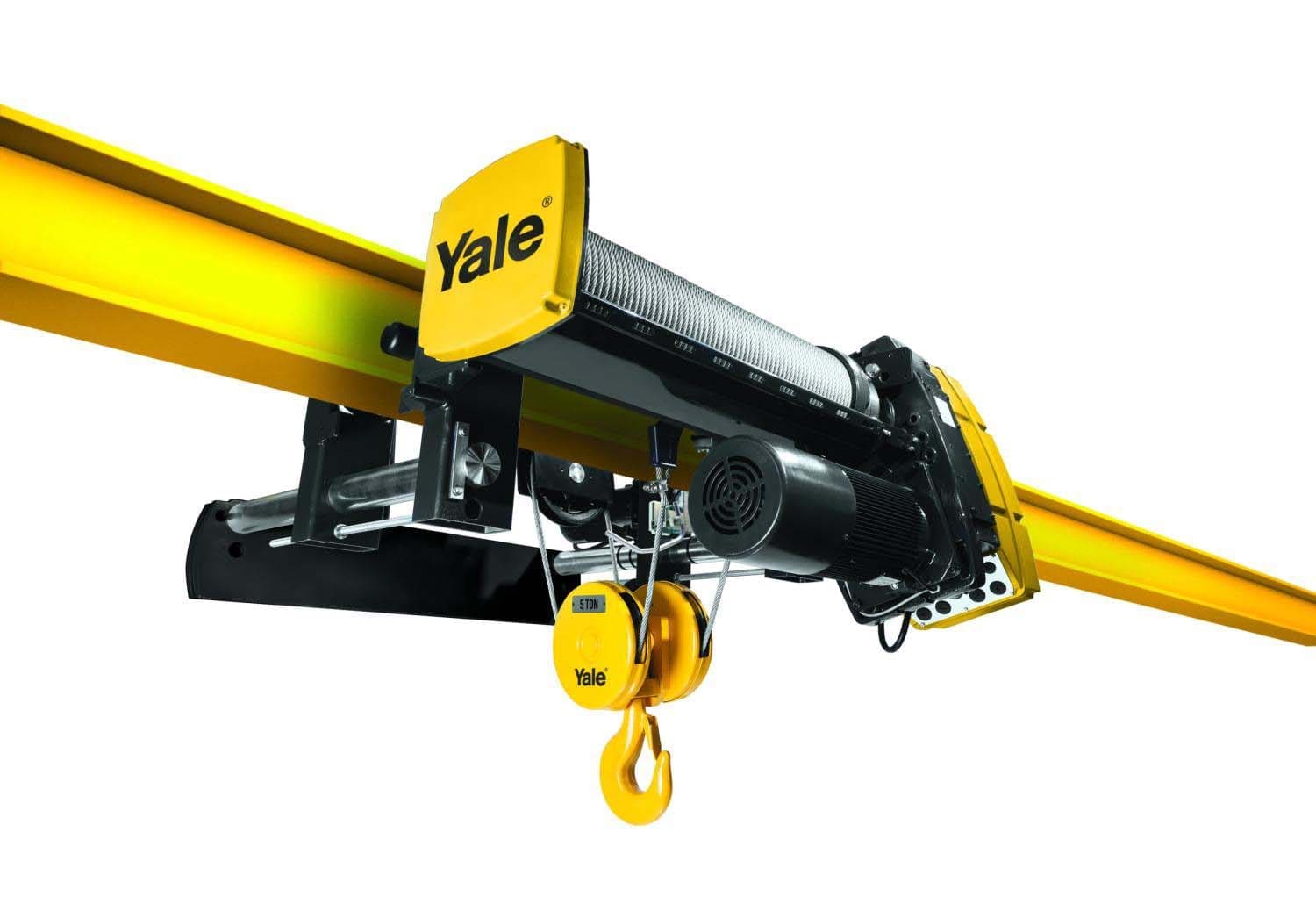

Of the Yale wire rope hoists, “YK” delivers industry-leading technology, safety and performance for your lifting applications in a compact and easy-to-maintain design. When you need quality and performance in a wire rope hoist, turn to the Yale® YK™ hoist from Columbus McKinnon. Based on German technology, the YK delivers the industry-leading technology and safety you need for your lifting applications in a design that is compact and easy to maintain. Precision engineered for optimal performance, these monorail units are built for reliable operation, high efficiency, and long service life and are competitively priced for the U.S. market.

Standard safety features include block-operated limit switch, adjustable geared limit switch, motor, temperature control, and overload protection.

2-part single or 4-part single reeving is available, depending on the application.

Hoists can be configured to your unique application needs. Available in 5 frame sizes with 16 load capacity variants.

Assembled in Wadesboro, North Carolina, with German-made components, these units have short lead times to meet tight deadlines.

Compact dimensions dues to U-shape design. Exceptionally short approach allows for optimum use of work area when space is limited.

Extremely smooth starting and braking characteristics.

The KE monorail trolley is used on monorail runways and single-girder overhead traveling cranes. Trolley is easily adjustable for different beam sizes and comes standard with two speed trolley. Available for 1-15 ton capacities.

Specially designed for small clearances, the UE monorail trolley has a narrow width. It is used on monorail runways and single girder overhead traveling cranes. Available only for 20-30 ton capacities.

Provides reliable, user-friendly controls and industry-leading features to keep you working safely. Additional features are available for user configuration.

Allows for expanded speed adjustments, improved load control, high duty cycles, and increased crane life.

Largely maintenance-free design with field-proven components designed for low wear and long service life.

Specially designed for small clearances, the UE monorail trolley has a narrow width. It is used on monorail runways and single girder overhead travling cranes. Available only for 20-30 ton capacities.

  • Push Button Station
  • Towing Arm: Available for power supply with adjustable height and length.
  • Travel Limit Switch: Standard version includes limit switching in both directions, switching from fast/slow, and IP65 or NEMA 4/4X rating. Wired and mounted to the hoist.

H3 & H4

Y80

Yale Wire Rope Hoists

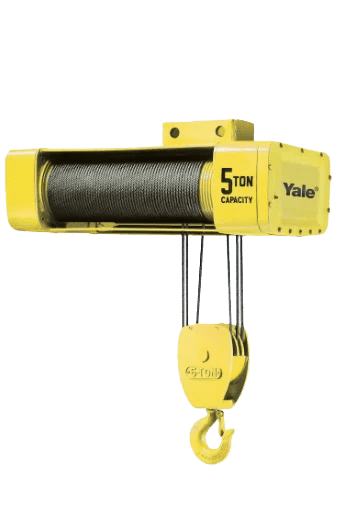

The heavy-duty “Y80” Yale wire rope hoist is available as a single- or double-reeved unit and features a powerful drive motor and reliable dual braking system. Of the Yale wire rope hoists, the “Y80” is ideally suited for virtually any lifting application. Their modular design and versatility provide a wide range of capacities, lifts, hoist speeds, and control options, making it possible to select the most efficient hoist for the job without wasted capacity or overkill.

Additional features and benefits include:

  • Lug, Push, Geared, or Motorized Trolley
  • Easily accessible control enclosure facilitates maintenance
  • D.C. disc motor brake for smooth braking action
  • High torque, heavy-duty hoist motor for smooth hoisting action
  • Block-operated upper limit stop to limit upward hook travel
  • Convenient one-handed pushbutton control for easy operation of all motions
  • 115 volts at push button for operator safety
  • Push-button cable with built-in strain reliever cable as used on single-speed hoist applications (All others use a separate steel strain reliever cable.)
  • Improved plow steel pre-formed cable for maximum strength and life
  • Full-swiveling, heat-treated forged an existing facility, reducing or steel hook with spring loaded latch
  • Shrouded lower block to help prevent pinched fingers
  • Alloy aluminum gear case and the cover is lightweight yet rugged
  • Oil level plug permits easy inspection of oil level
  • Anti-friction bearings throughout for a long-lasting hoist drive train
  • Positive action mechanical load lowering control brake, also acts as a part of the hoist holding brake system
  • Triple reduction helical/spur gearing operates in oil bath lube for maximum gearing life
  • Deep grooved, large diameter rope drum helps prevent rope mounting from an overhead structure, or with any of our overwrap for longer wire rope life
  • Heavy welded steel frame ensures a precise fit for long hoisting machinery life
  • Magnetek frequency control drives are available as an option for hoist and trolley

LodeKing LT™

Yale Wire Rope Hoists

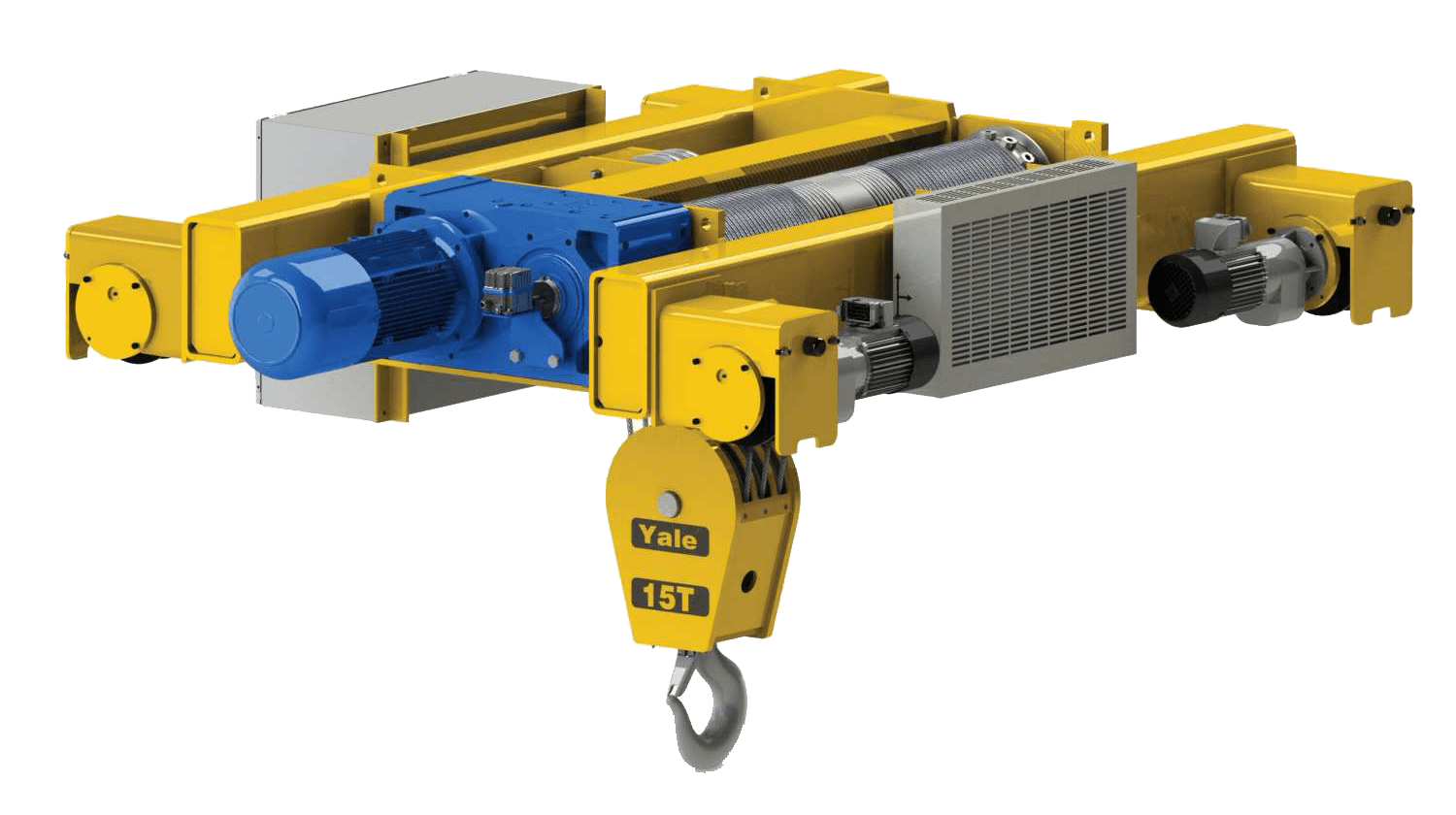

The Yale wire rope hoist, “LodeKing LT™,” provides the same high-quality performance and durability of the original LodeKing™ in an ultra-low-headroom design, making it the ideal choice when purchasing a new or replacement hoist for applications with space limitations.
The LodeKing LT™ features plastic-infused wire rope that prevents metal-to-metal contact between strands, helping to reduce abrasion and wear within the wire rope. The LodeKing LT™ low-headroom models are available in capacities from 10 to 25 tons and, depending on your application needs, are available in economical low-horsepower, top-running and deck-mount models.

Standard Benefits & Features:

  • True Vertical Lift: Better load control. Easy movement and placement of product.
  • Heavy-Duty Steel Drum: 50% groove depth to guard against rope jumping out of groove.
  • Industry-Proven Gear Drive: Easy-to-maintain gear drive features a sight glass for quick inspection of the oil level. Standard availability improves product lead time.
  • Standard Flux Vector Hoist Drive Package: Improves load control and allows for precise movements. Reduces brake wear.
  • Magnetek IMPULSE® VG+ Series 4 Drive: What’s driving your hoist? This best-in-class drive was designed with industry-leading safety and performance features. Multiple control options and power supplies are available. (See brochure for full details)
  • Plastic-Infused Wire Rope: Specifically developed for maximum performance on overhead cranes. Plastic-coated core prevents metal-to-metal contact between the core and outer strands, helping to reduce abrasion and wear while increasing the rope strength.
  • Trolley VFD Control Standard on All Units: Allows for smooth acceleration and deceleration.
  • Supplemental Upper & Lower Limit Switch: Safely stops load from being lifted or lowered beyond set limits, reducing damage to equipment and hoist.
  • Exceeds CMAA Class D Rope-to-Sheave & Drum Diameter: Reduces rope maintenance.
  • 200% Motor Brake Torque Rating: Secondary brake exceeds CMAA Standards. Stops and holds a rated load quickly and securely.
  • External Hoist Brake Resistor: Allows for dynamic braking and uninterrupted drive service at high duty cycles. Hoists are not equipped with load brakes, reducing heat generation in high-duty-cycle applications.
  • 15 to 25 HP Motors Available: Offers wide range of hoist lifting speeds.
  • Wheel Blocks Using Integral Axle Trolley Wheel Components: Ideal for Class D service requirements. Ball bearings used on 10-ton capacity and roller bearings used for 15 through 25-ton capacities.
  • Thermal Overload Protection: Provided with the drive.
  • Electronic Hoist Monitoring Card: Hoist comes standard with Pulse™ Monitor Card that records key information that can simplify troubleshooting and help reduce maintenance costs. Learn more.

Optional Features:

  • Load Sensing: Standard field programmable
  • Auxiliary Holding Brake
  • Wide Range of Lifts and Trolley Gauges
  • Overlay Protection with Spooling Bar

Cable King

Yale Wire Rope Hoists

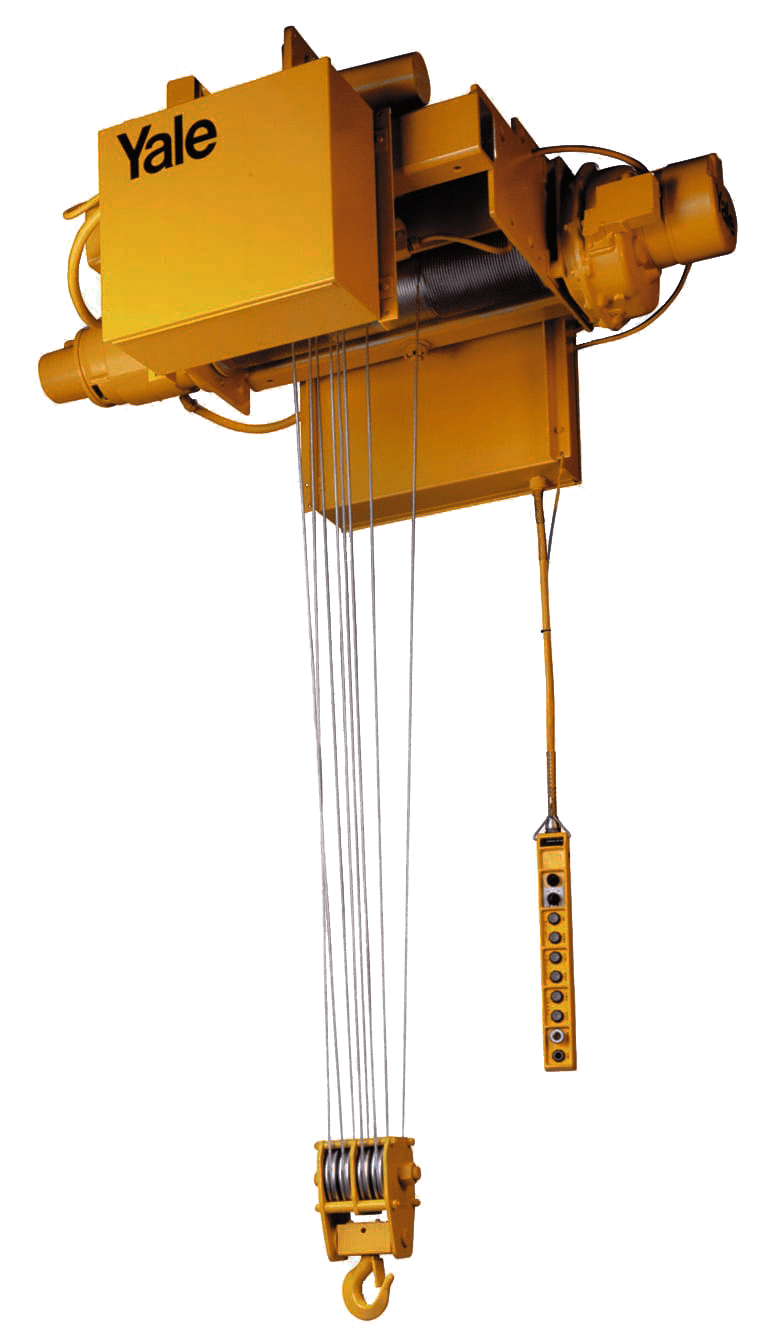

The Yale wire rope hoist, “Cable King” is ideal for heavy-duty applications. The one-piece welded steel frame, machined steel drum, closed bottom blocks, motor and its mounting with a bolt, simple, geared or motorized carriage, make it a robust, reliable and heavy-duty unit. Designed and manufactured under OSHA 1910.179, HMI-100-74, ASME B30.2, HST-4, CMMA 70 &74 NEC/NFPA 70 standards.
Standard Benefits & Features:

  • Frame: One-piece welded steel made from heavy structural shapes provides a rugged, and durable foundation for precise mounting and alignment of the hoisting machinery.
  • Gearing: Precision spur gearing machined from high-alloy steel or drop forgings is case hardened for quiet operation and long life. Gearing operates in a precision machined ductile iron or steel gearcase and is oil bath lubricated.
  • Rope Drum: Fabricated steel drum machined with grooving cuts up to 50% of the rope’s diameter to guard against the rope jumping out of the groove, which can damage and weaken the rope.
  • Bottom Blocks: Enclosed blocks with 360 degree hook rotation. All hooks provided with a spring loaded hook latch as standard.
  • Motors: High starting torque made especially for hoisting service. The motors are TENV, 30-minute rated with class F insulation and thermostats as standard.
  • Automotive-type drive shaft: Borrowing from the automotive industry, Cable King hoists incorporated a smooth running, long-lasting drive shaft for effective power transmission from the motor to the drive gearing.
  • Brakes: Weston screw-type load control brake and disk-type AC motor brake rated at a minimum 125% of the motor’s torque.
  • Controls: One and two speed and variable frequency housed in a NEMA 12 enclosure as standard. The 115-volt control circuit is fused.
  • Limit Switch: As standard an upper and lower adjustable geared control circuit limit switch is provided along with an upper block-plugging limit switch.

Optional Features:

  • Non-cataloged lifts and speeds
  • Hot metal applications
  • Car shaker applications
  • Bucket hoists
  • Marine duty offshore applications
  • Special paint finishes
  • Winch applications
